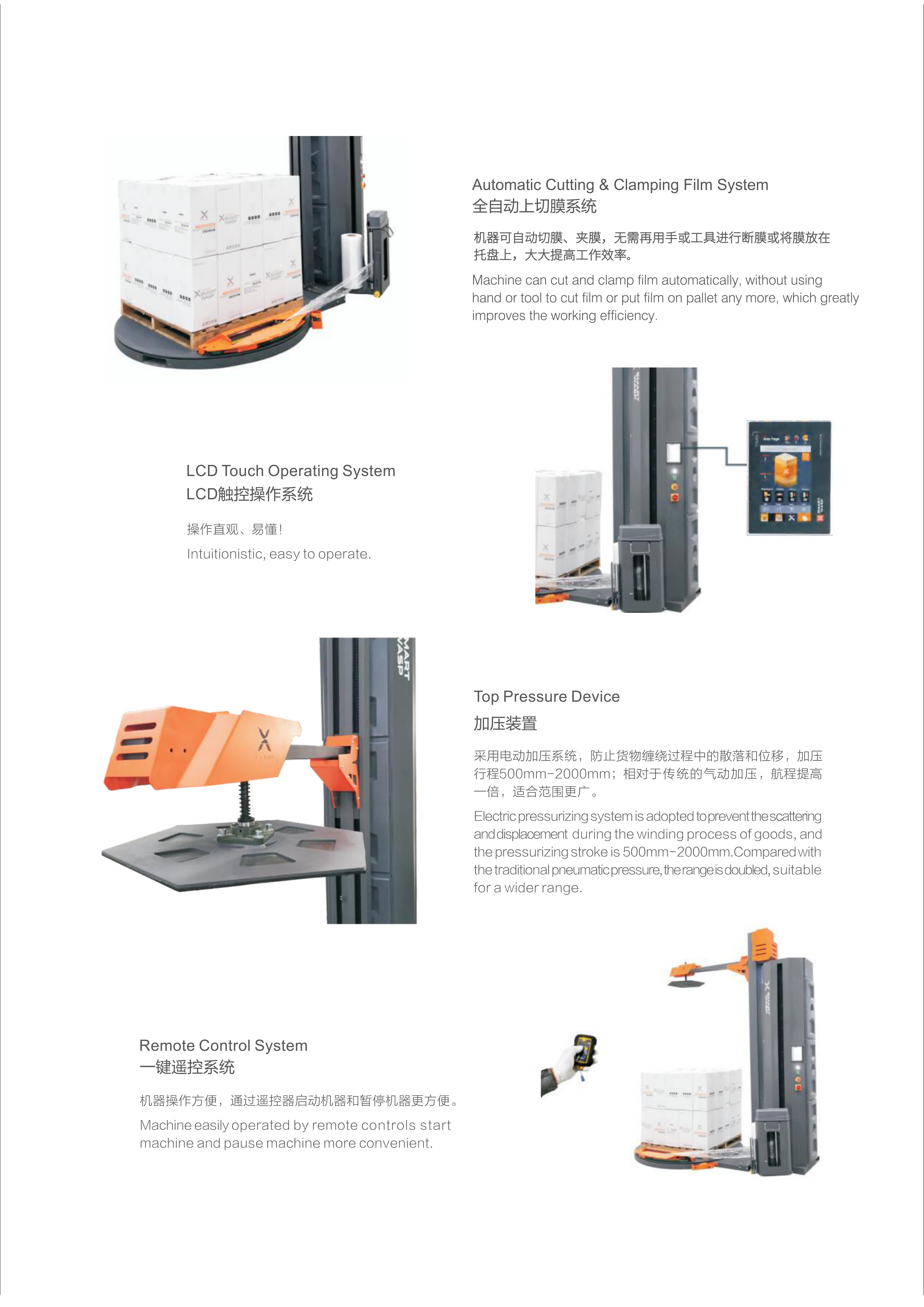

1.Automatic Cut and Clamp Film
X100 automatic cut and clamp film system, let worker no need use they hand to cut film and put film on pallet any more ,cut &clamp
fim system will do it automatically .
2.Pallet Grip system
*Pallet grip system: film bottom narrowed to become film rope, film rope grip to pallet & products during wrapping.
1.During transport, no need worry the products fall down when the pallets get violent vibration
2.If the forklift damage the film on the bottom of pallet, the film do not breach.
3.Pallet bottom grip and whole journey grip can be instead of the horizontal strapping machine
3.Saving Film Consumption
Maximum up to 380% pre-stretch rate
Maximize the value of each meter of stretch film Standard constant releasing film Fixed-point wrapping and quantitative use film
4.Muti-layer Function
This function we can set different wrapping circles, wrapping force at any height you want and maximum we can set 9 layers for
pallet. Normal machine's wrapping force from bottom to top is the same, and it can not stop during wrapping or achieve reinforce
wrapping function.
5.Better Spare Parts
SIEMENS PLC
SICK proximity switch
AUTONICS photoelectric switch
WEIDMULLER terminal block
X-LINE Inveter
OMRON 24DC supply
6. Advanced Safety Technology
1. Safety device under film carriage to protect the foot or head of the operator
2.Transparent board makes it easy to find problem without opening door.
3.Up and down belt deviation and damaged alarm system. Alarming in time to avoid carriage dropping down.
7.Intelligent operation Guiding system
1. X100 with LED indicator on machine
Ready for work--Blue color
During working--Green color
Alarm--Red color
2.Touch screen guide the user how to operate machine. If alarm appears, touch screen will show you how to solve problem.
